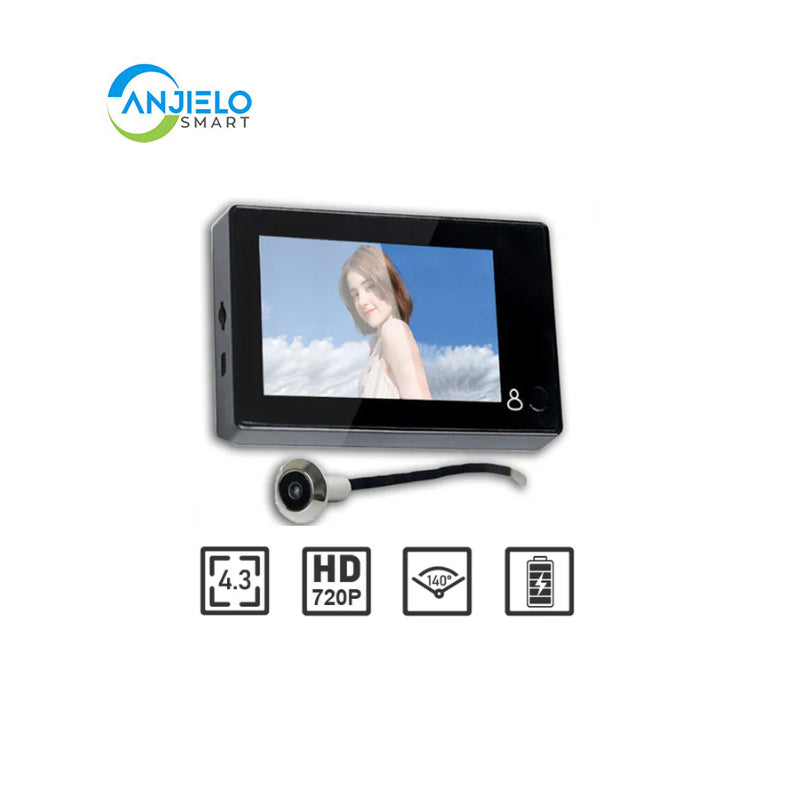

Anjielo Smart Home 4.3-Inch HD Peephole Camera: Color Digital Viewer for Wide-Angle Door Monitoring

$34.20 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Model 61018

Quantité

Anjielo Smart Home Digital Door Viewer with 4.3" Color Screen: Wide-Angle Peephole Camera & Monitor

1. Main features

Camera and imaging

- Sensor type: 1/4-inch CMOS, 1 megapixel (1280×720)

- Viewing angle: 140° (horizontal)

- Shooting modes:

- Color (starting at 0.5 lux)

- Black and white (starting at 0.02 lux)

- Automatic functions:

- Automatic white balance

- Automatic brightness control (AGC)

- Backlight compensation

- Night mode (automatically switches to black and white mode)

- Focal length: 2.4 mm (fixed)

- Frame rate: 25 fps (720p resolution)

Screen and controls

- Display: 4.3-inch TFT, 480×272 pixels

- Controls:

- Short button press - Turn on screen/take photo

- Long press (3 seconds) - Enter photo review mode

- Automatically turns off after 15 seconds of inactivity

Memory and data storage

- When not using a TF card:

- Can save 11 photos (temporary storage, old photos will be deleted the next time you shoot)

- Using a TF card (up to 32GB):

- Unlimited shooting

- Automatic overwriting when the memory is full

- Supports M-JPEG format

- High-speed cards (Class 10 and above) are recommended

Power supply

- Battery: 1800 mAh (lithium-ion battery, removable)

- Usage time:

- Up to 90 days in standby mode (10 times a day)

- Up to 180 days in deep power saving mode

- Charging:

- Via Micro USB (5V/1-2A)

- Can be charged separately (with a universal charger)

2. Installation and compatibility

- Door thickness: 30-140 mm

- Opening diameter: 15-50 mm

Included screws:

- 35 mm (for 30-60 mm doors)

- 65 mm (for 60-100 mm doors)

- 85 mm (for 100-140 mm doors)

- Anti-theft protection:

- Zinc alloy outdoor unit

- Anti-vandalism bracket

3. Functions

Operation modes:

1. Live mode

- Press the button, the screen lights up for 15 seconds, showing the image taken by the camera.

2. Photo taking

- Card inserted: photos are saved to TF card.

- No card inserted: 11 photos are saved in the memory (old photos are automatically deleted).

3. Photo browsing

- Long press the button → enter the gallery → short press to scroll.

Power saving:

- The screen turns off after 15 seconds of inactivity.

- The power consumption in standby mode is 100 μA.

4. Applications

- Home - Visitor monitoring, anti-theft.

- Office/Hotel - Record visitors (when using a memory card).

- Convenient for elderly and children to view without going through the cat's eye.

5. Limitations and features

- No motion sensor:

The device is not equipped with a motion sensor. It can only be activated manually by pressing a button. To view visitors, the screen must be turned on manually.

- No video recording:

Smart cat's eye only supports taking pictures. The built-in memory and TF card only save static images (photos are in M-JPEG format). It is not possible to record or create videos continuously.

6. Usage suggestions

- Applicable people:

Users who only need manual control, such as checking visitors before opening the door.

Users who do not need video archiving or automatic notification.

- How to make up for the lack of motion sensors:

You can install a separate motion sensor on the door and connect it to other security systems.

If using a TF card, please check the photo records regularly.

7. Important Tips

- Photos vs. Videos:

Take one photo each time you press the button - continuous shooting is not supported.

To record events, it is recommended to save photos manually in time.

- Security:

Not supporting video recording can reduce memory load, but photos need to be saved more carefully.

This smart cat eye is a simple and reliable local surveillance solution. Its advantages include energy saving, long battery life and vandal-proof design.
