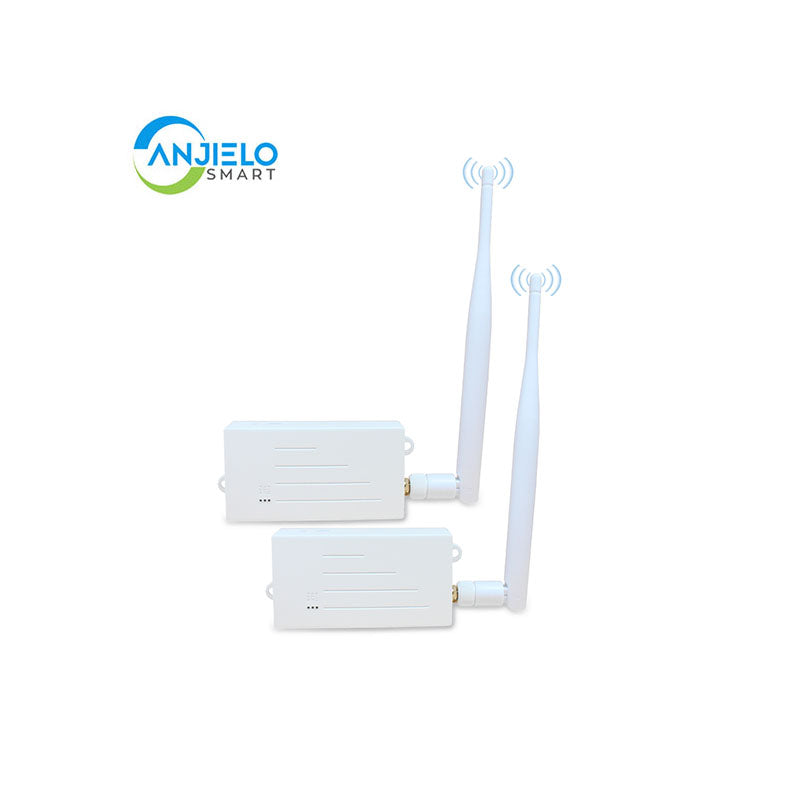

Anjielo Smart Professional WIFI Halow Bridges Kit Quickly Achieve Long-Distance Connections Up to 3 Kilometers
Anjielo Smart Professional WIFI Halow Bridges Kit Quickly Achieve Long-Distance Connections Up to 3 Kilometers
Couldn't load pickup availability
Anjielo WiFi HaLow Router - Low Energy Use with Up to 3 km Reach, Supports Long Device Standby Time.
| Category | Parameter | Description |

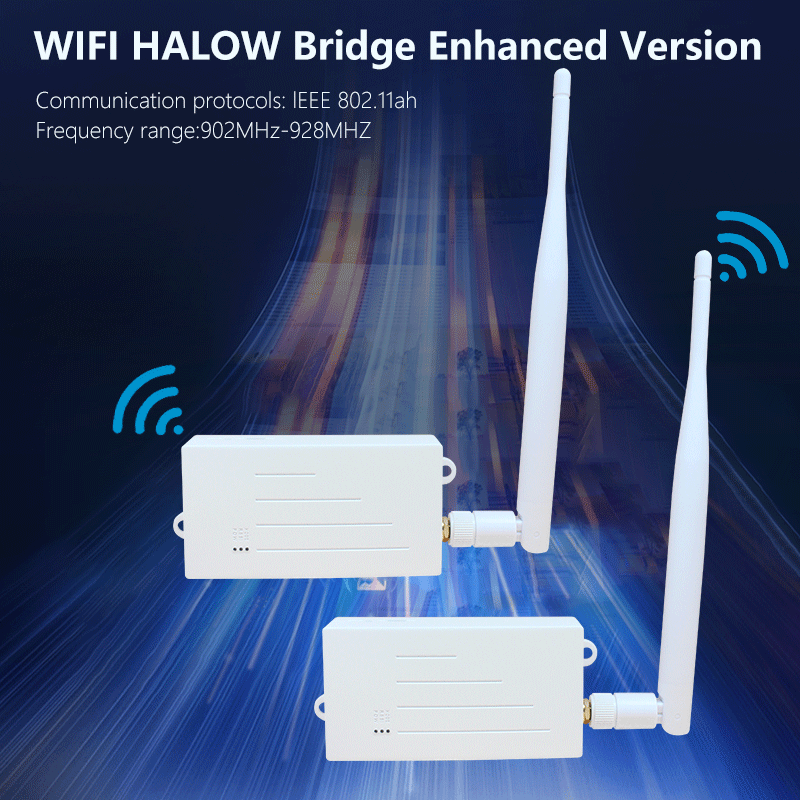

| Wireless performance | Communicationprotocol | IEEE802.11ah |
| Frequency range | 902MHz-928MHz | |
| Communication bandwidth | 8MHz | |
| Data rate Max | 16Mbps | |
| Receiving sensitivity | 1M PPDU MCS=10 -105dbm; 8M PPDU MCS=0 -95dbm; 8M PPDU MCS=7 -81dbm |
|

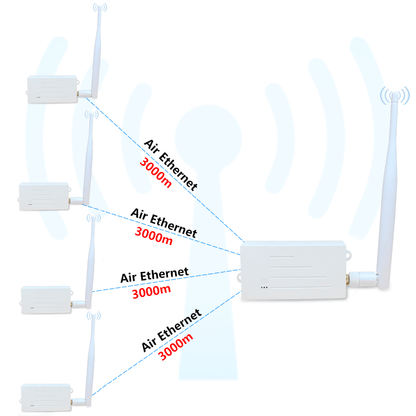

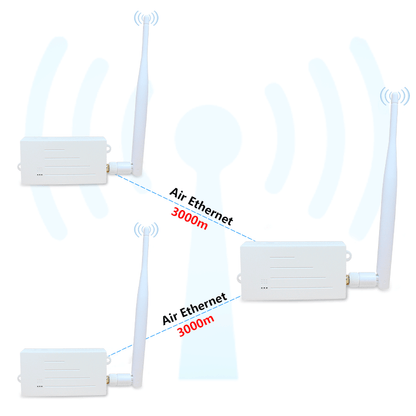

| Number of supported network nodes: | up to 8 access points | |
| Transmit power | 33dBm 2W | |
| Debugging method | BPSK, QPSK, QAM16 or QAM64 | |

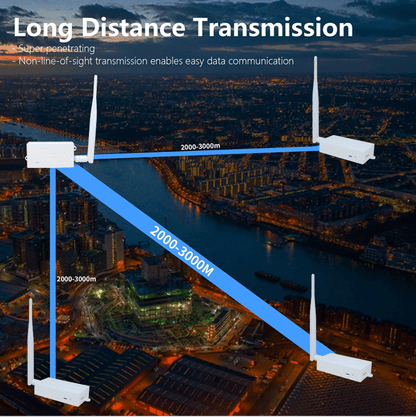

| Transmission distance | 3 km with line of sight, 500 meters without line of sight | |
| Security Specification | WPA2-PSK | |
| Encryption method | AES | |
| hardware | Network port | 10/100Mbps |
| Serial port | TTL level | |
| Serial port baud rate Default | 115200 | |
| Power supply | DC12V/1A | |
| LED light indication | Power Indicator Central point (AP) and access point display Signal strength indicator |
|
| Antenna interface | SMA external thread internal hole | |
| Electrical properties | Input voltage | 12V1A |
| Maximum current | 0.6A/12V (frequently transmitted during full time slot) | |
| Average working power consumption | 5W (normal working mode) | |
| Operating temperature | -20℃~70℃ | |
| Storage temperature | -30 ℃ ~ 80 ℃ | |
| Working humidity | 10%~90% | |
| Storage humidity | 5%~95% | |
| antenna | Specifications | External 2db omnidirectional antenna |
| Length | 19cm | |

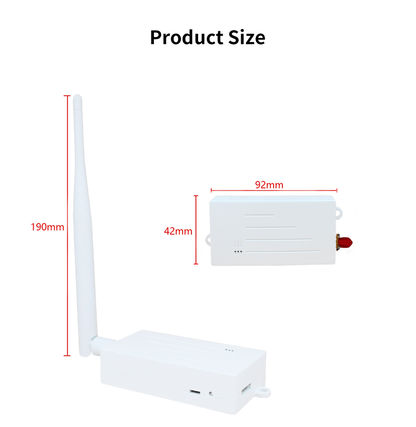

| size | Product Size | 92x42x13mm (not including antenna) |
| Product weight | 62g |
What is Wi-Fi HaLow?
This is a new, low-power, remote version of Wi-Fi designed to meet the unique requirements of the Internet of Things.Based on the IEEE 802.11ah standard, Wi-Fi HaLow builds on the market success of Wi-Fi to deliver an uncompromising wireless solution that provides the energy efficiency, extended range, obstacle penetration, native IP support, ease of use and leading-edge security features that IoT developers are looking for.Traditional Wi-Fi allows users to quickly transfer movies and download files on a variety of radio frequencies in the 2.4GHz, 5GHz and 6GHz bands. These higher frequency Wi-Fi connections have a short effective range and can quickly drain the battery, requiring frequent charging, battery replacement or plugging in. Wi-Fi HaLow is designed to reduce power consumption, increase wireless range and data rates without limiting performance, and support more devices in the network.
Wide Compatibility.
Ideal for many Outdoor wireless network cameras, such as Hikvision/DaHua/Sony/Pansonic/Uniview and more IP cameras, with operation temperature: -5℉-120℉(-20℃-48℃).

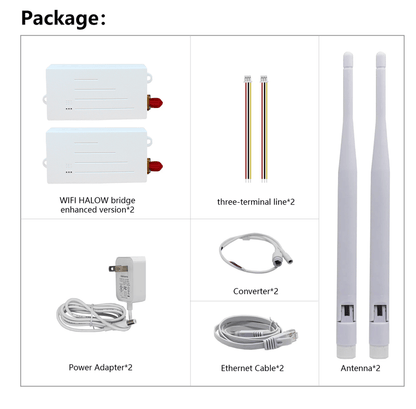

Product List:
A-Type (1 to 1)
1x User Manual
Support two-way talk
Support two-way voice intercom, effective pickup range of 10 meters.
-

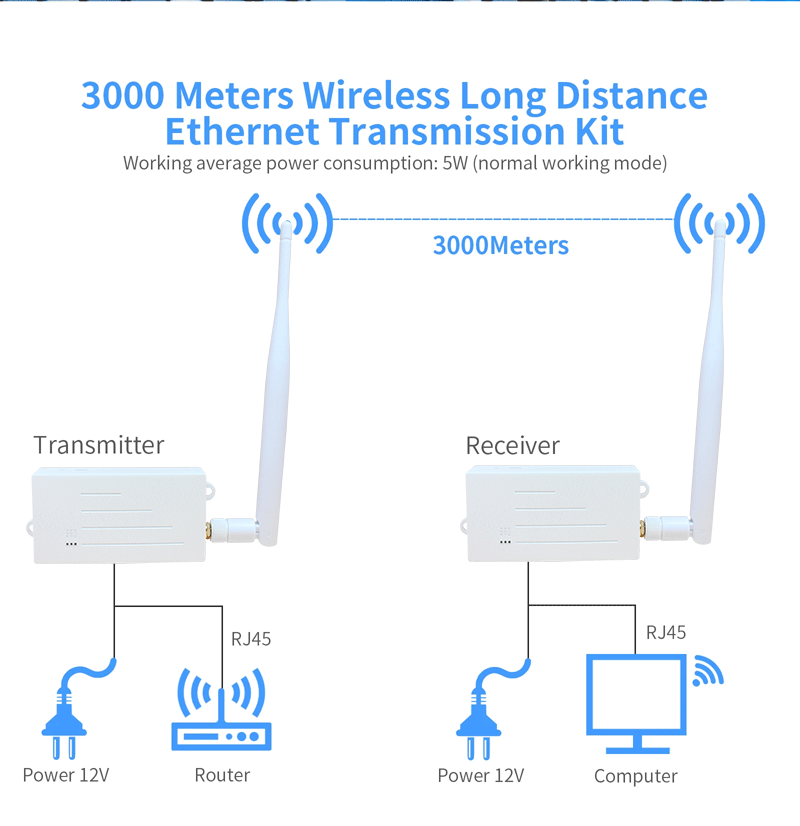

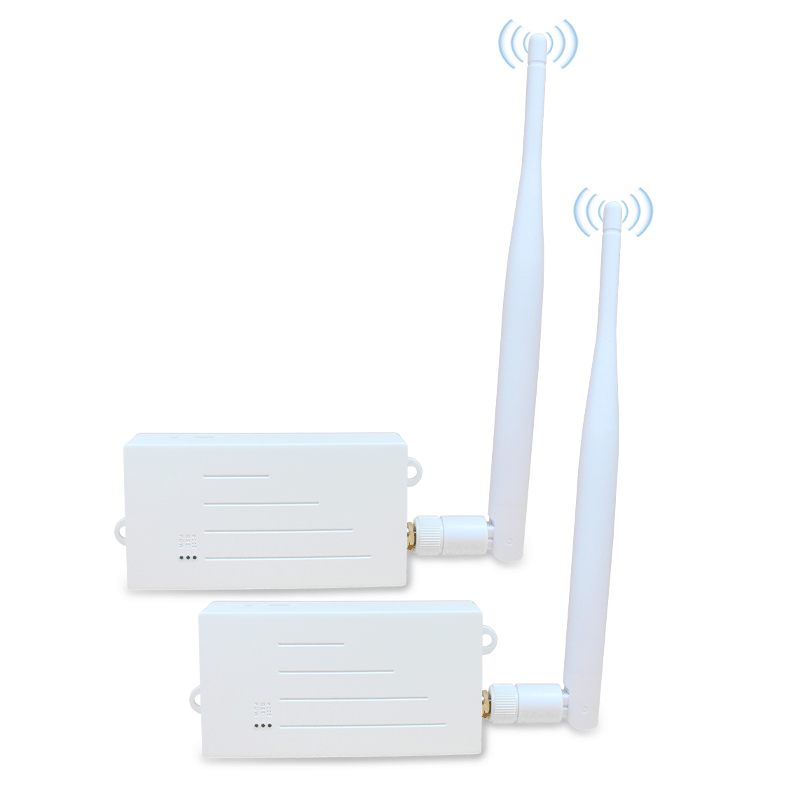

Point-to-Point Wireless Connection. Wireless wifi bridge with an ethernet port and LED display, with a transmitter and a receiver unit, are pre-configured for point-to-point connection.
-

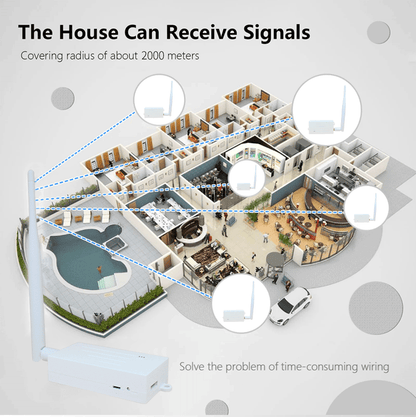

Suitable For Anywhere,like living room, office, shop, warehouse, garage, and anywhere you can install it.
Easy to set them up with IP cameras (cameras) and network DVR / NVR. Plug and play, easy to build the connection, without complex wiring work.
